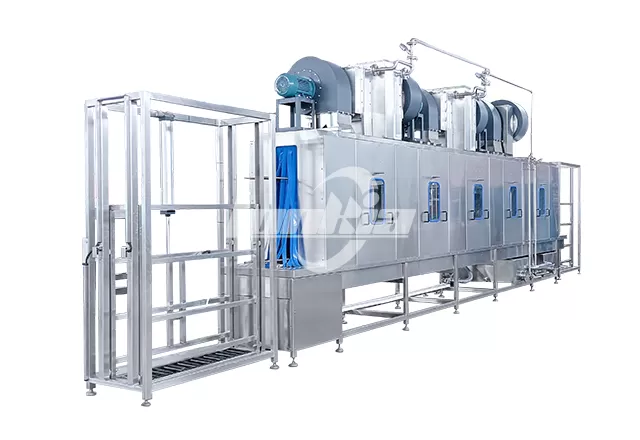

Pallet Washer

Pallet Washers are specialized machines designed to clean and sanitize industrial pallets used in various sectors such as food processing and manufacturing. Our pallet washers offer versatile configurations and optional features to ensure thorough cleaning and sanitization, enabling businesses to prioritize core activities without concerns about contamination risks.

Pallet Washer

Overview

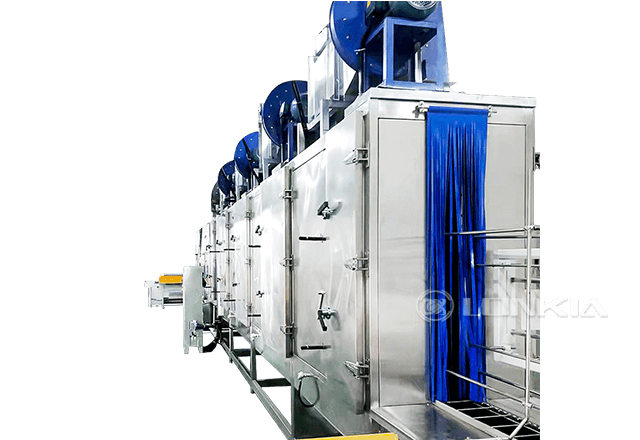

LONKIA's pallet washing machine is a fully automatic piece of equipment that integrates cleaning and drying. It is mainly used for cleaning and disinfecting pallets used in industrial production, and is widely used in food processing factories, logistic centers, and other industries that require strict cleaning standards.

The workflow of this pallet washer is highly efficient and automated, completing the four steps of pre-rinse, main wash, rinsing and drying in sequence. Pallet through the conveyor system into the cleaning channel in turn, pre-rinse stage using high-pressure nozzles to remove surface impurities, the main wash stage through high-temperature water flow or special cleaning agent to rinse oil and bacteria, and then thoroughly rinsed with water and residual cleaning agent. Finally, the advanced drying system of the plastic tray washing machine can quickly remove moisture from the tray's surface, preventing bacterial growth, ensuring product and food safety, and improving work efficiency.

The efficient circulating spray system can not only quickly and thoroughly clean the oil stains and dust on the pallets, but also improve the utilization of water resources and save costs. Therefore, it is especially suitable for deep cleaning of plastic pallets and trays, which helps to ensure the production environment hygiene and product safety. We also provide a tailor-made tray washer for pallet cleaning, support customized design, and adapt to different pallet sizes and production line requirements. You can contact us at any time for more product details and solutions.

pallets

Advantage

High-Pressure Jets-Plastic pallet washers utilize high-pressure water jets to remove stubborn dirt, grease, and residues from the pallet surfaces.
Rotating Nozzles-The industrial tray washer is equipped with rotating nozzles that provide comprehensive coverage, and the water flow rate and number of nuzzles are scientifically calculated to ensure that all parts of the pallets are thoroughly cleaned.
Multi-Stage Cleaning-Includes stages such as pre-wash, main wash, rinsing, and drying to ensure pallets are completely clean and ready for use.
Adjustable Settings-Customizable settings for water pressure, temperature, and detergent use to accommodate different types of pallets and levels of soiling.

Parameter

Specification	Details
Voltage	220V/380V
Speed	200-800 pieces per hour
Cleaning Process	Hot water cleaning
Material	SUS304
Control System	PLC automatic control
Power Source	Electric or steam (customizable)

Note: Technical specifications may change without notice due to ongoing technological advancements.

How does the Pallet Washing Machine Work?

The pallet washing machine operates through a continuous process that automatically conveys, cleans, rinses, and dries pallets. The entire workflow is coordinated by a PLC control system, ensuring uniform, efficient, and stable cleaning.

Automatic Conveying and Positioning: Pallets are transported to the pallet washer's inlet via an automated conveyor system, eliminating manual handling, reducing labor intensity, and enhancing continuous operation efficiency.
Pre-wash: High-pressure spray nozzles perform a preliminary wash, removing large particles of dust, soil, and loose debris from the pallet surface to prepare for subsequent deep cleaning.
Main Wash: The pallet washer machine then sprays high-temperature water and detergent through high-pressure nozzles at multiple angles, effectively dissolving and removing stubborn grease, residues, and microorganisms. The multi-directional, full-coverage spray design enhances cleaning efficiency and thoroughness.
Rinsing: Residual detergent must be completely flushed away. The rinsing zone sprays clean water to thoroughly remove any remaining chemicals from the pallets, ensuring no secondary contamination of cleaned products or food.
Drying (Optional): Finally, after cleaning, hot air or ambient air drying systems blow-dry surface moisture from trays, enabling cleaned trays to be rapidly deployed for subsequent use.

This integrated, highly automated process significantly boosts cleaning efficiency, reduces water and labor consumption, while enhancing cleaning consistency and stability.

Pallet Washers for Sale

LONKIA is a leading manufacturer and supplier of pallet washing machines in China, dedicated to providing customers with one-stop solutions from initial consultation to stable equipment operation. All pallet washer machines are manufactured in our own factory, ensuring controllable equipment quality and delivery. Leveraging an experienced engineering team and a stable manufacturing system, we continuously optimize equipment structure and cleaning processes to meet cleaning effectiveness requirements while maintaining operational efficiency. With extensive industry experience, LONKIA provides customized pallet washer solutions featuring reliable structures and stable operation tailored to diverse application needs.

FAQ

1. Which industries are pallet washers suitable for? Pallet washer machines are ideal for scenarios requiring strict cleanliness standards, such as food processing, beverage manufacturing, cold chain logistics, and the automotive parts industry.
2. Can the machine clean different pallet models? Common plastic pallets of various sizes can be cleaned. Specific cleaning protocols can adjust spray pressure and cycles based on pallet dimensions and materials. Contact us for customized cleaning solutions.
3. Can it integrate with existing production plants? Pallet washers typically interface with existing automated production lines, supporting integration with stacking systems, pallet inverters, and similar equipment to enhance overall process automation.
4. Is equipment maintenance complicated? Pallet washing machines are designed for ease of maintenance, with core components easily removable for cleaning. Routine upkeep primarily involves inspecting nozzles, filters, and conveyor chains, while keeping the exterior clean.
5. Do you provide training and support? Yes. We offer commissioning, operator training, spare parts, and preventive maintenance plans.
