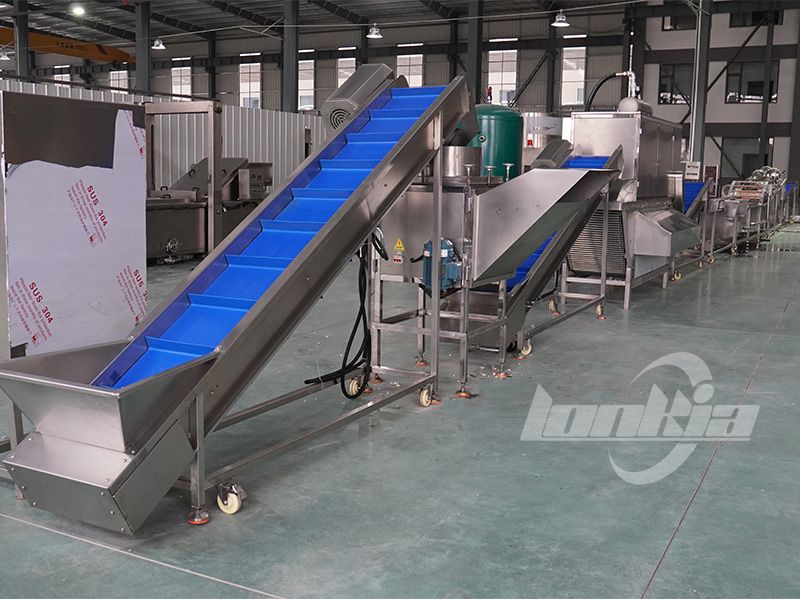

In modern garlic processing plant, garlic peeling line integrates cleaning, cloving, peeling, sorting and conveying, and has become an indispensable core equipment. Compared with the traditional manual peeling method, the automatic garlic peeling line has many advantages such as high efficiency, low breakage rate, cleanliness and hygiene. This article will introduce the workflow of a standard garlic peeling production line, to help users better understand the operation of the whole line.
Bubble Cleaning and Separation Stage
- Bubble cleaning system: the use of high-pressure water flow and the impact of bubbles, the garlic surface of the sediment and impurities effectively stripped to improve the quality of the subsequent peeling.
- Separation device: the cleaned whole head of garlic enters into the separator through the conveyor belt, adopting the separating roller with adjustable gap to divide the garlic into uniform garlic cloves and reduce the mechanical damage.

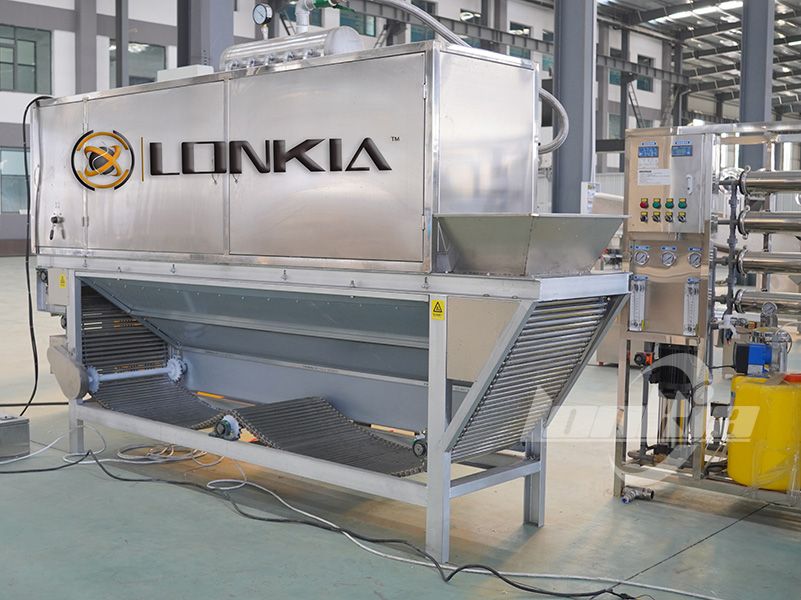

Peeling Stage in Garlic Peeling Line
- Grinding peeling: garlic cloves enter the grinding pipe, the wall of which is made of food-grade stainless steel, and the gap with the grinding shaft is fine-tuned, and the outer skin is peeled off with the help of friction and impact.
- Wind blowing: The peeled garlic cloves pass through the fan blowing area to further remove the residual outer skin and fine impurities to ensure the cleanliness of the finished product.
Secondary Sorting and Aggregate Stage
- Vibrating sorting table: The garlic cloves with different particle sizes are graded by using vibrating screen mesh, and the garlic cloves are separated along the screen mesh due to different gravity, which improves the consistency of the products.
- Conveying and bag collecting: Qualified garlic cloves are uniformly guided to the discharge port by the conveyor belt, and fall into the collecting container or packing conveying line, which is convenient for the subsequent packing or deep-processing operation.
Automatic Control and Data Monitoring
- PLC Intelligent control: The whole garlic peeling line is centrally managed by a programmable logic controller (PLC), and the parameters of each link, such as rotational speed, wind pressure, and water flow rate, can be set and adjusted intuitively on the touch screen.
- Real-time monitoring and alarm: Sensors collect material temperature, humidity and production speed in real time, when there is an abnormality (blockage, water shortage, etc.), the system automatically alarms and suspends the operation to ensure production safety.
Through the close cooperation of the above links, the garlic peeling line realizes highly efficient and stable fully automated operation, which greatly reduces the labor cost and improves the peeling quality. Choosing Lonkia garlic peeling machine not only meets the needs of assembly line garlic processing, but also realizes flexible production through intelligent control module, which is the ideal equipment for modern garlic deep-processing plants. If you need to know more about the equipment parameters or customized solutions, welcome to contact Lonkia's professional team to provide you with one-stop technical support and services.
