Egg Tray Washing Machine

Egg tray washing machine is a special equipment for cleaning reusable plastic egg tray or plastic egg plate, widely used in food processing, egg sorting, egg packaging and other industries. Through high-pressure spraying, hot water circulation and multiple cleaning procedures, it effectively removes egg liquid, feathers, eggshell fragments, stains and bacteria from the surface of egg trays, safeguarding egg hygiene and prolonging the service life of the trays. LONKIA's egg tray washer machines, with their compact structure and stable operation, are the most important equipment for modern egg processing companies to improve their efficiency and hygiene standards.

Overview

Egg tray washing machine, also known as egg tray washer, is mainly used for centralized cleaning of plastic egg trays. Plastic egg trays are easily contaminated during use, and if they are not thoroughly cleaned in time, they may harbor bacteria, affecting the hygiene and safety of egg products, and even causing cross-contamination. Therefore, the use of professional egg tray cleaning equipment has become an important means of improving production standards in many egg processing plants.

In order to obtain clean egg trays, egg tray washing machines are designed with advanced features to ensure perfect operation. The egg tray washing machine consists of an infeed conveyor section, a pre-wash zone, a main wash zone, a hot water rinse zone, an air drying zone and an outfeed conveyor section. The entire washing process is coordinated by an automatic control system, which ensures that each egg tray is handled efficiently in the different washing stages.

The egg tray washer is usually equipped with several sets of nozzles to spray the egg trays at high pressure from different angles, and with hot water circulation and food-grade detergents, it can quickly decompose the oil and egg stains and improve the cleaning efficiency. Part of the egg tray washer machine also has a filtration system and water recycling device, saving water, reducing wastewater discharge, in line with the requirements of energy saving and environmental protection.

As a professional washing machine manufacture, all the configurations of our egg tray washing machine can be designed according to your needs, capacity and other requirements. Therefore, it is widely used in egg processing factories, central kitchens and distribution centers of agricultural products, and it is one of the key equipment to ensure the hygiene and safety of egg products in the process of distribution. The right egg tray washer is the first step to your business success. Please free to contact us now.

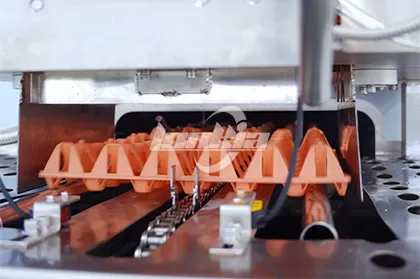

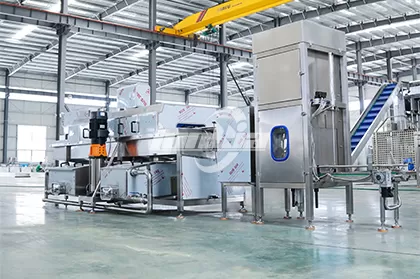

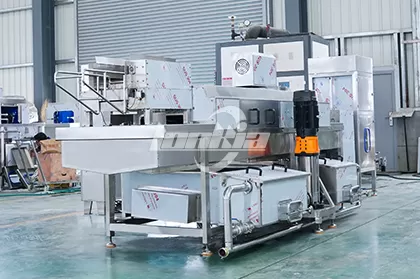

Gallery

Advantage

Good Cleaning Efficient-LONKIA's egg tray washer machines are designed with a three-stage or multi-stage cleaning design that includes pre-wash, main wash and rinse. The high-pressure spraying combined with multi-angle rinsing can fully cover all surfaces of the egg tray, effectively removing adherents and improving the cleaning quality.
Energy Saving and High Efficiency-The egg tray washing machine is equipped with a water recycling system, the cleaning water can be utilized many times, with precision filtration device, to avoid the impurities back to clog the nozzle, to extend the life of the equipment and save water. The automated tray cleaning process of the egg tray washer reduces labor costs and provides a cost-effective solution for egg processing plants.
Rugged Design-All of our egg tray washers are manufactured using high quality food grade stainless steel. This makes the egg tray washing machines durable. In addition, the main parts of the egg tray cleaners such as nozzles, conveyor chains, screens, etc. can be quickly disassembled for easy routine maintenance and cleaning.
Support for Customization-Depending on the size of the egg trays, the production volume and the layout of the plant of different customers, LONKIA can provide customized service for egg tray washing machine. Whether you need to wash a few hundred or tens of thousands of trays per day, LONKIA can provide a customized solution.

Parameter

Specification	Details
Applicable Products	Plastic egg trays, plastic egg cartons
Production Capacity	200-3000 units/hour (customizable)
Temperature Accuracy	±1°C (adjustable hot water or steam mode)
Voltage	220V/380V
Material	SUS304 stainless steel
Dimensions (LWH)	6000×1400×1800 mm

Note: Technical specifications may change without notice due to ongoing technological advancements.

Working Process of Egg Tray Washer Machine

How does an egg tray washing system operate? The basic workflow is as follows:

Egg trays awaiting cleaning enter the conveyor system via the feed end. The equipment continuously transports the trays into the cleaning zone at a preset speed.

First, a pre-wash stage uses pressurized water sprays to remove loose surface debris.
Trays then proceed to the main cleaning section, where high-pressure nozzles flush the grooves and edges from multiple angles to dislodge stubborn egg residue. The washing water circulates within the system and passes through filtration devices to remove impurities.
Finally, the egg trays pass through a rinsing section before being discharged at the output end, ensuring a consistently clean state for subsequent reuse.
Depending on the configuration, the egg tray washing machine may include an air-drying section to reduce residual moisture on the tray surfaces.

The egg tray washing system is simple yet efficient, enabling continuous and stable operation.

Egg Tray Washer Successful Project

For enterprises engaged in large-scale egg tray cleaning, an egg tray washer machine is an indispensable investment. Recently, an agricultural packaging company from Malaysia specifically purchased an advanced egg tray washer from Lonkia. The plastic egg tray washer was manufactured to the customer's exact specifications. After complete transportation, installation, and commissioning, it commenced continuous operation, meeting the daily production line's consistent requirements for egg tray cleanliness and hygiene. The customer reported stable machine operation and reliable cleaning results, while simultaneously reducing manual cleaning burdens and enhancing overall operational efficiency.

Read the article to know more details about this project: Egg Tray Washer Machine Successfully Shipped to Malaysia

FAQ

1. What types of egg cartons are suitable for the egg tray washer? The egg tray washing machine is primarily designed for cleaning reusable plastic egg cartons. It can accommodate cartons of varying sizes and structures by adjusting the conveyor width, spray angle, and operating speed.
2. What aspects require attention during routine maintenance? Routine maintenance primarily involves nozzle inspections, cleaning the filtration system, and regular checks of conveyor components. Regular upkeep helps extend equipment lifespan and maintain cleaning effectiveness.
3. Can the egg tray washer machine be customized for specific factories? Adjustments can be made to the number of washing sections, conveyor methods, and equipment length based on the customer's existing production cycle, site layout, and egg tray specifications.
4. Can it operate continuously for extended periods? The plastic egg tray washer features a continuous-flow design suitable for stable long-term operation. It can clean 200-3000 trays per hour, making it ideal for batch processing scenarios.
5. What after-sales services are provided? As a professional container washer manufacturer, LONKIA offers installation, commissioning, training, and maintenance to ensure stable and efficient operation.
