Plantain Chips Frying Line Processing Workflow

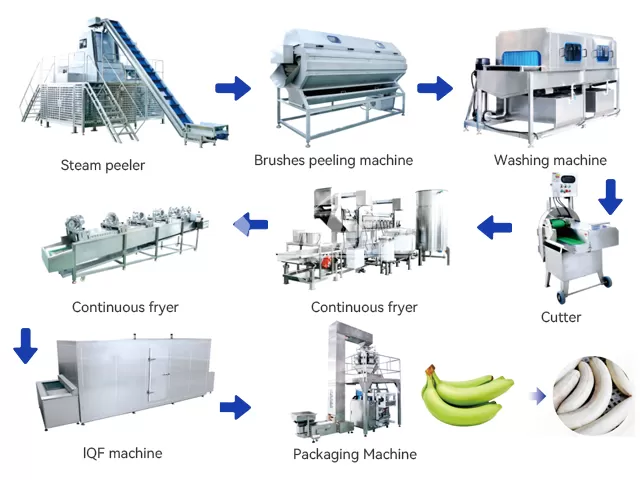

Steam Peeling ➡ Washing ➡ Slicing ➡ Frying ➡ De-oiling ➡ Air-Drying ➡ Quick-Freezing ➡ Packaging
The plantain chips production line features a complete and efficient workflow, with virtually all processes automated by dedicated plantain chips processing machine. The steam peeler first removes the skin from fresh plantains. The peeled plantains then enter a fruit and vegetable washer for thorough cleaning to eliminate impurities and residues. After washing, the plantains are sliced into uniform pieces by the plantain chips slicer machine before proceeding to the plantain chips frying machine for frying, achieving a crispy texture.
The fried plantain slices pass through a vibrating screen to remove excess oil and prevent sticking. They are then further dried and cooled in an air cooler to ensure optimal texture and quality. For products requiring long-term storage or export, an IQF machine rapidly freezes the slices. Finally, an automatic packaging machine completes the process, producing ready-to-sell finished banana chips.
Plantain Chips Processing Machine
1. Steam Peeling Machine
The steam peeling machine is suitable for plantains of varying sizes and ripeness levels. As the core equipment in the plantain chips production line, it utilizes high-temperature steam to soften the plantain skin before mechanically removing the peel. This method effectively minimizes pulp damage while enhancing peeling speed and efficiency.
2. Brush Peeler Machine
The brush peeler machine performs secondary polishing and fine peeling on plantains processed by the steam peeler. Rotating brush rollers gently abrade the surface to remove residual thin skin and impurities, yielding smoother, more uniform slices while preserving pulp integrity. When used in conjunction with the steam peeler, the brush peeling machine significantly enhances overall peeling efficiency and improves the visual quality of plantain slices.
3. Fruit and Vegetable Washer
Peeled plantains enter the fruit and vegetable washer, where water flow and brushing mechanisms thoroughly remove residual peel, dust, and impurities. This ensures hygiene and product quality for subsequent slicing and frying processes. The vegetable washer supports continuous operation with adjustable throughput to accommodate large-scale production demands.
4. Plantain Chips Slicer Machine
The plantain chips slicer machine cuts washed plantains into uniform slices with adjustable thickness to meet diverse market requirements. Consistent slicing is crucial for ensuring uniform frying results and texture across the plantain chips production line. Equipped with high-precision blades, the plantain chips slicer machine delivers fast, efficient cutting ideal for continuous processing.
5. Plantain Chips Frying Machine
The plantain chips frying machine cooks sliced plantains to a golden-brown, crisp texture. Equipped with precise temperature control and timing functions, it adjusts parameters based on chip thickness, oil temperature, and frying duration to ensure consistent taste across every product. The continuous frying machine can also be configured with filtration and circulation systems to enhance oil utilization efficiency and extend equipment lifespan.
6. Vibrating Screen
After frying, plantain chips may retain surface and internal oils. The vibrating screen removes excess oil, resulting in drier, crispier finished products with superior texture and extended shelf life. We also offer advanced deoiling machines that integrate with air-drying units to ensure continuous production.
7. Air Dryer Machine
The air dryer machine further removes residual moisture and oil from the plantain chips surface, enhancing product stability for easier storage and transportation. Adjustable temperature and airflow during drying ensure optimal dryness and texture.
8. Quick Freeze Machine
For export or long-term storage, the quick freeze machine rapidly freezes air-dried plantain chips, locking in freshness and texture for subsequent packaging and transport. This ensures plantain chips remain intact during cold chain transportation and extends shelf life.
9. Automatic Packaging Machine
The final step in the plantain chips production line is packaging. The packaging machine measures, bags, labels, and date-prints the finished plantain chips, preparing them for direct sale or storage. Packaging methods can be customized to meet diverse retail, export, and bulk sales requirements.
Plantain Chips Production Line Advantages
1. Premium Materials, Durable and Reliable
All plantain chips production machines are constructed from robust, food-grade stainless steel. Resistant to corrosion and wear, and easy to clean, they ensure long-term stable operation. Compliant with food hygiene standards, they offer safety and reliability, making them an ideal investment choice.
2. High Performance
The banana plantain chips production line features a complete set of fully automatic plantain chips machine, enabling highly automated operation and extended continuous runtime. Its user-friendly design and high efficiency significantly reduce labor costs while boosting output and production stability.
3. Consistent Product Quality
Through standardized processing and precise control of parameters like temperature, time, and thickness, our plantain chips processing machines produce chips with uniform color, crisp texture, and consistent quality—meeting market demands for premium snacks.
4. Competitive Pricing
Our plantain steam peeling production lines are manufactured entirely in-house, enabling us to offer more competitive pricing than rivals. Equipment configurations are flexible and can be customized to meet specific output requirements, accommodating production needs of varying scales.
Fully Automatic Plantain Slices Processing Line Supplier
As a reliable plantain slices processing line supplier, we provide customized turnkey solutions. The right plantain chips production line is crucial for the success of your plantain chip manufacturing business. We tailor plantain chips processing machine configurations and automation levels according to customer requirements. High-quality plantain chips production machine ensures optimal final product quality. If you wish to start a plantain chips frying line processing business or upgrade your existing plantain chips processing plant, contact us immediately.
Successful Experience in Plantain Chips Production Line
A Honduran client purchased LONKIA plantain steam peeling machine and other plantain chips machines, with the technical team providing comprehensive installation and commissioning services. After the equipment commenced production, the client reported that the entire process flow became smoother, production efficiency significantly improved, and the quality of finished plantain slices became more stable. The overall performance exceeded expectations.
